How to Use a Multimeter on a Car: Safe DIY Guide 2026

To use a multimeter on a car, plug the black lead into the COM jack and the red lead into the V jack, turn the dial to DC volts (the V with a straight line and a dashed line) and select a 20V range for a 12V system. Touch the red probe to the positive battery terminal and the black probe to the negative terminal, and the display shows you the battery’s voltage. Everything past that is practice.

A multimeter turns a vague complaint into a number. A slow crank, a blinking dome light, a battery that dies overnight, one dead taillight — each of those has a test attached to it, and most take under two minutes. You don’t need a workshop or a scan tool for the first five tests, and you almost never need to buy a part before running them.

This guide walks through the whole sequence in the order I’d run it: check the meter, test the battery, test the charging system, then work outward to fuses, cables, switches and sensors. I’ve kept the voltage numbers in plain text so you can compare them against the display instead of hunting through a manual. Where a car’s factory specifications differ, the service information wins every time.

One warning before we start: on a hybrid or electric vehicle, the orange high-voltage cables are not automotive 12V circuits and a multimeter has no business near them. The 12V accessory battery in those cars tests exactly like a normal battery. Stick to that battery and the ordinary wiring around it.

Table of Contents

• What You Need
• Step-by-Step: How to Use a Multimeter on a Car
  • Step 1: Set Up the Multimeter Safely
  • Step 2: Test the Battery and Charging System
  • Step 3: Check Fuses and Electrical Connections
  • Step 4: Test Sensors and Switches
• Common Mistakes
• Frequently Asked Questions
  • Can I test a car battery with a multimeter while the engine is running?
  • What is a normal voltage reading on a 12V car battery?
  • Do I need to disconnect the battery before testing resistance or continuity?
  • When is a multimeter not enough and do I need a scan tool?
  • Can I use a cheap multimeter on my car, or will it give me bad readings?
• Conclusion

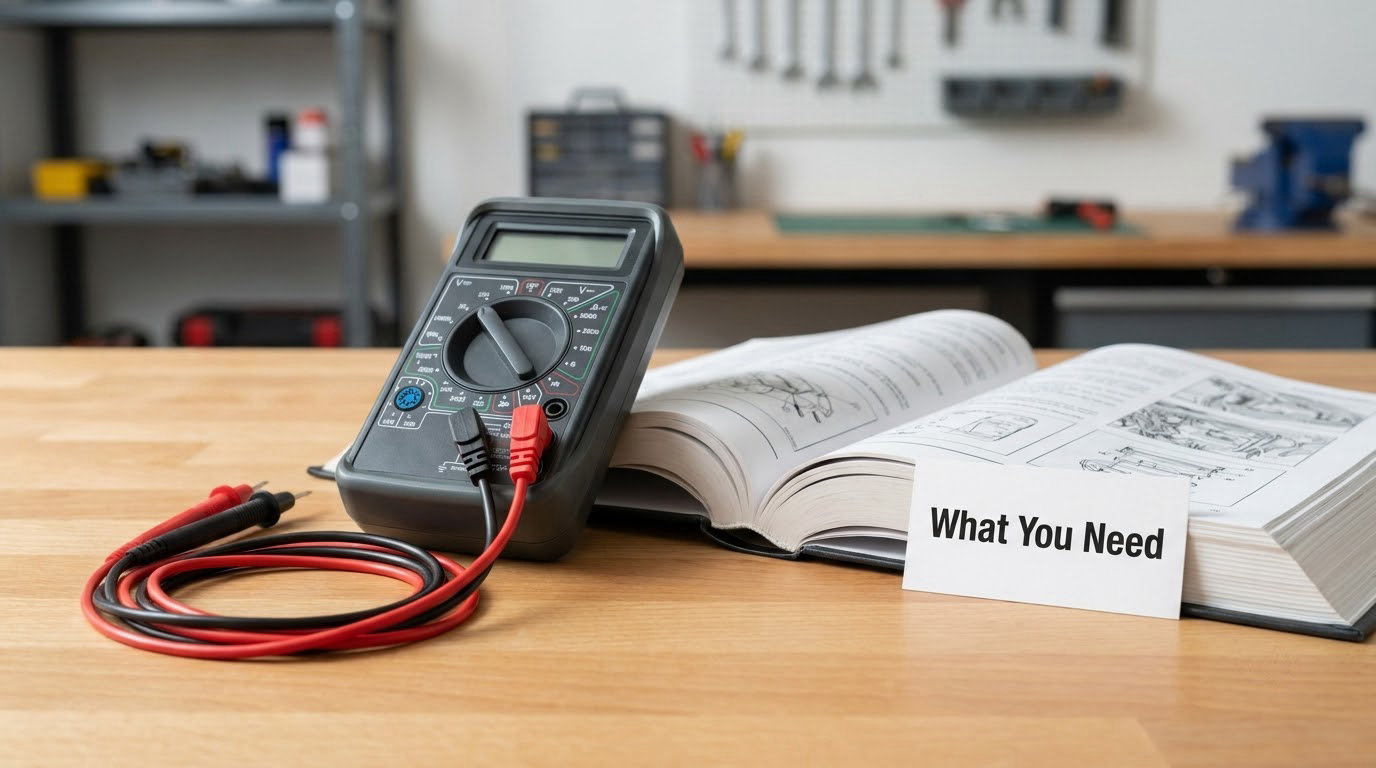

What You Need

You need a digital multimeter, a fuse puller, the service information for your vehicle, and a handful of hand tools. That’s genuinely it for the tests in this guide.

Digital is the right choice for a first meter. An analog meter has a needle you have to read against a moving scale, and it wants a zero adjustment every time you move it. A digital meter gives you a number, holds it on the display, and auto-ranges most of the time, which removes one whole category of beginner mistake.

What matters on a car specifically is the input protection. A meter with a fused input and a CAT safety rating can survive the transient spike that happens when you disconnect a battery with the engine running. A cheap meter without that protection can let the spike straight through the circuitry. If your meter lies to you, every diagnosis downstream of it is worthless, so I’d rather spend on a meter with real specs than on a part.

Also grab a small fuse puller. Pliers work in a pinch, but they crush the plastic housing and you’ll be hunting for the leak next month. A cheap plastic one lives in the glovebox forever.

For documents, the owner’s manual gets you started and the service information for your model gives you the wiring diagrams and the specific test points. A generic wiring diagram that isn’t for your year and engine will send you probing the wrong connector, which is worse than having no diagram.

Hand tools in reach: a socket set for battery terminal access, a ratchet, and a wire brush or terminal cleaner. Corroded terminals produce ugly readings that have nothing to do with the part you’re testing.

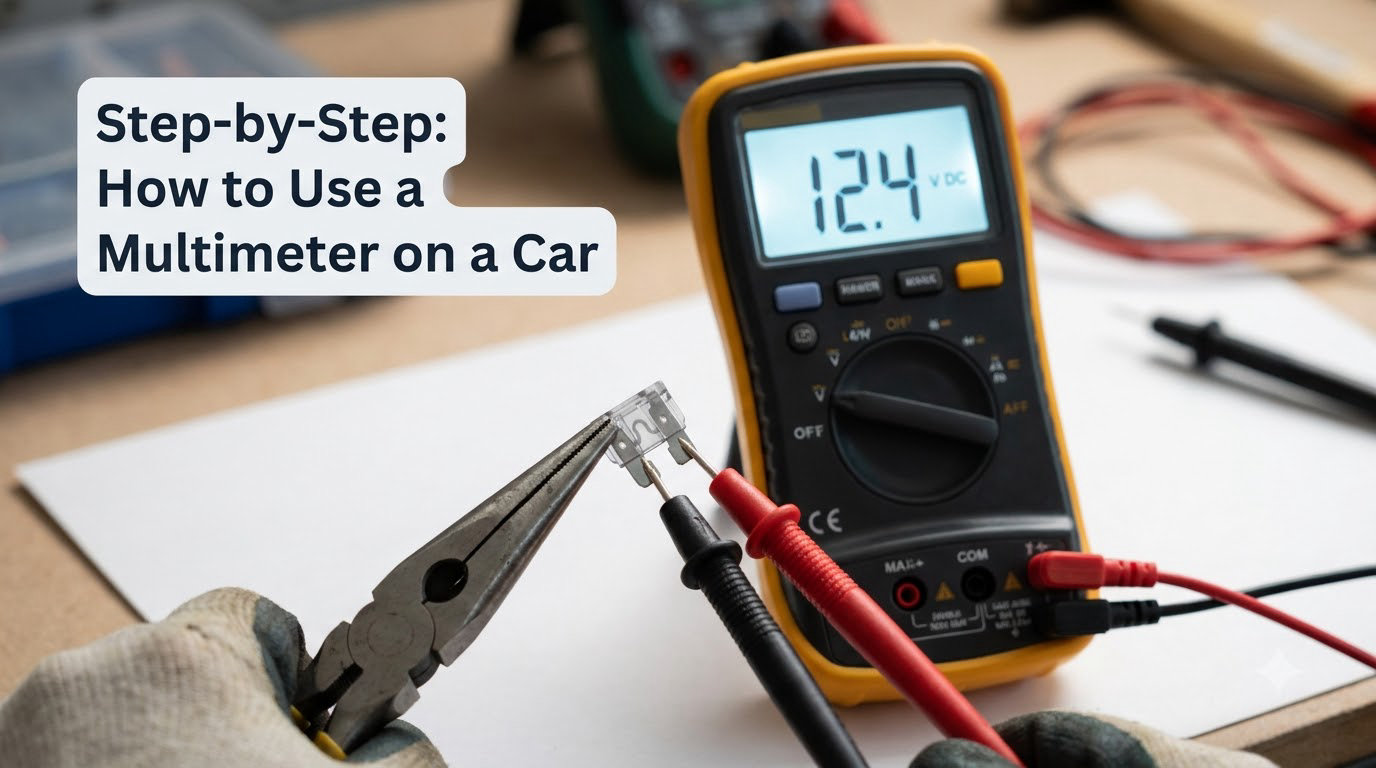

Step-by-Step: How to Use a Multimeter on a Car

There are four stages, and the order matters. Set the meter up safely, then test the battery and charging system, then fuses and connections, then sensors and switches. If you skip ahead to the sensors because the car is running rough, you’ll end up testing a circuit that’s really telling you about your battery.

Step 1: Set Up the Multimeter Safely

Put the black lead in COM and the red lead in the V jack, every time, before anything else. The black lead is your reference point and the red lead is where you go looking. On most meters the V jack is the middle one, with the A or mA current jack separate on the side.

Turn the dial to DC voltage — the V symbol with a solid line above a dashed line. If your meter auto-ranges, it picks the range for you. If it doesn’t, set it to 20V on a 12V car. A 12V battery pushing 14.7V through the alternator will blow straight through a 200mV range.

Sanity-check the meter before you trust it. Touch the two probes together and the display should read zero or close to it. Then test it on a known source — an AA cell reads about 1.5V, or a second good battery reads whatever you measured last week. A meter that’s off by a few tenths on a known battery is normal; one that’s off by two volts is telling you something about itself.

This matters more than people expect. On r/MechanicAdvice, a user who measured 1.5 ohms and thought his wiring was fine was told the meter was the problem, because low-cost meters struggle with low resistance readings. Verify first, diagnose second.

Two rules cover most of the ways beginners damage a meter. Never switch to resistance or continuity mode while the circuit is energized — an ohmmeter pushes its own current through the circuit, and against a live 12V line it will be damaged. And never place the meter across a battery while it’s set to amps. The battery will push current far beyond what the meter’s fuse or internal shunt is built for, and you’ll destroy the instrument instantly.

For the resistance work later in this guide, disconnect the negative battery terminal first. Use the ten-minute memory on your radio or your alarm code before you do, because some cars lose their settings and some anti-theft modules need a wake-up sequence.

Step 2: Test the Battery and Charging System

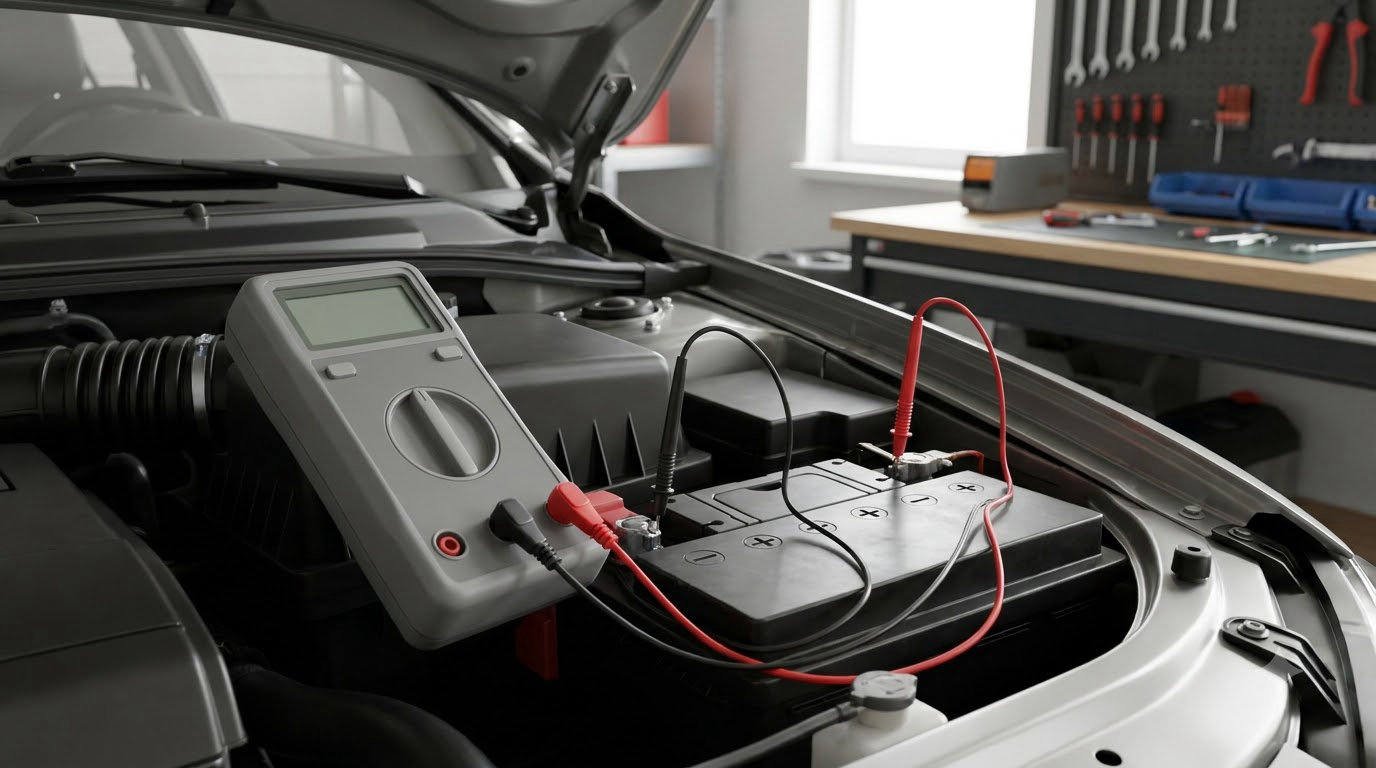

Start with the car off, keys out, and the vehicle sitting for at least an hour so the surface charge settles. Red probe on the positive terminal, black probe on the negative terminal. Read the number.

12.6V or higher means fully charged. 12.4V to 12.5V is moderately charged. 12.0V to 12.3V is slightly low and wants a charger. Below 11.8V is dead or faulty.

A static voltage reading tells you about charge, not about capacity. A battery can hold 12.6V sitting still and still fail the moment you turn the key, because a sulphated cell collapses under load. That’s why the next reading matters.

Cranking test: have someone turn the key while you hold the probes on the same terminals, or set the meter on the battery and watch it from the driver’s seat. The voltage should dip but stay at 9.6V or higher for a healthy battery. If it falls below 10.5V while cranking and the engine cranks slowly, the battery is weak.

That single number separates the two complaints people mix up constantly. Weak cranking that drags down to 10V and slowly recovers means battery. Healthy cranking that stays above 11V and then turns over but won’t fire means something else entirely — fuel, spark, or a compression problem a multimeter won’t help with.

Alternator test: start the engine and let it idle. The reading should now be between 13.7V and 14.7V. Below 13.0V with the engine running points at the alternator or the belt. Above 15.0V points at the voltage regulator, and that’s worth knowing because an overcharging alternator cooks batteries.

Back-probe the positive battery terminal while the engine runs so the reading includes the cable and the connection, not just the alternator. If the alternator reads 14.2V at its own output post but you see 13.4V at the battery, you’ve found your fault without a single other tool: corrosion or resistance in the B+ path. That big post on the alternator labelled B+ carries all the charging current to the battery, as the dsmtuners forum people point out, and it’s the spot most people never check.

Here’s the same information as a reference grid.

Reading	Car state	What it means	Next step
12.6V or higher	Engine off, at rest	Fully charged	Move on to the cranking test
12.4V to 12.5V	Engine off, at rest	Moderately charged	Put it on a charger and retest
12.0V to 12.3V	Engine off, at rest	Slightly low	Charge, then test under load
Below 11.8V	Engine off, at rest	Dead or faulty	Replace or load test the battery
9.6V or higher	While cranking	Battery holds up	Look elsewhere for a no-start
Below 10.5V	While cranking	Battery is weak	Charge and retest, then replace
13.7V to 14.7V	Engine running	Alternator charging normally	Nothing, this is correct
Below 13.0V	Engine running	Alternator or belt fault	Check belt tension, then the alternator
Above 15.0V	Engine running	Voltage regulator fault	Stop using the car, test the regulator

On a car with an automatic transmission, select neutral and hold the brake. With a manual, leave it in neutral and have someone work the pedal.

Step 3: Check Fuses and Electrical Connections

Fuse test, with the ignition off: pull the fuse with the puller and set the meter to continuity or resistance. Touch one probe to each metal contact on top of the fuse, not one to the top and one to the bottom, because a puller-friendly mini blade fuse has a common metal strip inside. A good fuse beeps and reads close to zero ohms. No beep or an open reading means it’s blown.

Check both faces. A fuse can look perfect from one side and have a broken element on the other. And never test a glass or ceramic fuse while it’s resting on a metal surface — the metal completes a path and the meter reports a healthy fuse that is dead. Set it on a wooden bench or hold it in the puller.

Voltage drop test: this is the one that actually finds corroded cables and tired grounds, and it’s the test most written guides skip. With the circuit energized and a load on it — engine running, headlights on — put one probe on the battery positive post and the other on the far end of the cable, at the starter or alternator post. A healthy big cable drops around 0.1V to 0.3V. Half a volt or more is a bad connection.

Do the same across the negative cable, measuring from the battery negative post to the engine block or chassis. That’s the ground path, and on cars that sit in salt and rain all winter it’s usually the one that fails first. A clean, tight ground takes minutes to fix and saves people from replacing alternators that were never the problem.

Zero volts at the far end of a live circuit usually means the circuit isn’t live, not that the reading failed. Trace it: the fuse, then the relay, then the switch. The gmt400 community’s advice for a truck with a charging problem was to check voltage at the alternator harness, check continuity through the fuse, and ohm out the cable connections — that three-test order resolves most of these in a single sitting.

Continuity, with the battery disconnected: turn the dial to the continuity symbol, the little speaker or diode. One probe on each end of the wire you’re suspicious of. Beep means an intact path. Silence means an open circuit — a break somewhere between the two points. Use it to check a repair you just made, or to confirm that a new tail light harness actually carries power.

Then do the wiggle test. Hold the beeper on and flex the wiring along its length, through connectors, around hinges. If the buzzer drops out for a fraction of a second, you’ve found an intermittent fault that no voltmeter would ever have shown you. A r/Cartalk thread on a Chevy Impala that engaged but wouldn’t crank described exactly this: meter on audible continuity, wiggle the wiring, and the split-second silence in the beep points at the fault. It’s still the single most useful trick in this whole guide.

Step 4: Test Sensors and Switches

Simple switches are pure continuity. Ignition switch, brake light switch, door switch: battery disconnected, one probe on each terminal of the closed switch, expect a beep. Open it and the beep stops. If it beeps in both positions the contacts are welded shut, and if it never beeps the switch is dead or the wire to it is broken.

Two-wire sensors such as a thermistor or an older oxygen sensor are tested on resistance with the battery disconnected. Probe the two terminals and read the ohms, then compare against the number in the service information for that sensor. Most of these sensors are temperature-sensitive, so a reading taken with a cold engine means something different from the same reading on a hot one. The service manual’s chart shows the curve; the spec value on the housing is often a starting point, not a target.

Heated three-wire oxygen sensors have one of those wires supplying a switching current or a fixed voltage from the ECU, so you’re measuring a signal, not a resistance. That is a wiring-diagram job with the meter set to DC volts, and the expected waveform matters more than the number.

Here’s where to stop. Anything that only shows up as a stored code — misfires, sensor drift, communication faults between modules, or a fuel trim that keeps wandering — needs a scan tool or an oscilloscope, not a multimeter. A meter gives you a voltage at a moment. Modern powertrain control is reading thousands of values per second across networks a meter cannot see. Knowing the boundary is what keeps you from chasing a fault for a weekend and never finding it.

Common Mistakes

Every one of these shows up over and over on the forums, usually paired with someone about to buy an expensive part.

Red lead in the wrong jack. The red lead belongs in the V jack for everything in this guide. Put it in the A or mA jack and you’re one probe away from blowing a meter fuse across a battery. Check the jack before the dial, not after.

Resistance mode on a live circuit. An ohmmeter supplies its own current, so it needs a dead circuit to measure. Disconnect the negative terminal first. Testing resistance with the battery connected gives you a wrong number at best.

AC instead of DC. The AC symbol is the V with a sine wave on it. A car alternator and a car battery produce direct current. On the wrong setting you’ll see a small fluctuating number and conclude the battery is fine.

Forgetting the state of the engine. The same test means different things engine off versus running. 12.6V is excellent with the engine off and disappointing with the key turned; 13.8V is correct at idle and a dead alternator at the battery, depending on where you probed. Write down which state you were in.

A fuse lying on metal. The metal bench gives the current a path, the meter reports continuity, and you go looking for a fault that isn’t there. Hold the fuse in the puller or set it on wood.

Ignoring polarity on diode tests. A diode conducts in one direction only. Reverse the probes and the reading goes open, which is normal, not a failure. On a car you’ll meet this testing alternators, diodes in the harness, and some sensor circuits.

Reading an open circuit as zero. Zero volts on a circuit that should be live means the circuit isn’t live, so go looking upstream for the fuse, relay or switch. It doesn’t mean the wire is shorted, and chasing a short when you have an open is a long wasted afternoon.

Skipping the manual. Voltage specifications vary by model, by climate and by battery chemistry. An AGM battery and a flooded battery of the same age read differently at rest, and some manufacturers publish a charging range that isn’t the textbook 13.7V to 14.7V. Check the specifications before you condemn a part.

Probing where the design says not to. Airbag connectors, and the orange high-voltage cables on a hybrid, will hurt you. Fuel rails are not ground points even though they’re bolted to the engine. Know the exclusions before you start poking around a dashboard.

Frequently Asked Questions

Conclusion

Start with the safest and most informative measurement: engine off, red on the positive terminal, black on the negative, 12.6V or higher means the battery is charged. Then crank it and watch for 9.6V or higher. Those two readings together tell you whether you have a battery problem, and they cost nothing but five minutes.

Compare every number against your vehicle’s own specifications rather than a generic chart, and clean the terminals before you believe a strange reading. Practice the continuity beep and the wiggle test on a spare wire in your garage until it feels ordinary, because that is the technique that finds the faults nobody can see.

When the fault turns out to live in a module, a network, or a signal changing faster than a display can show, stop there and hand it to a shop with the right tools. Knowing where the multimeter ends is part of knowing how to use a multimeter on a car well, and it saves you from replacing parts on a car that was never broken.
